Description
In fertilizer production, the fertilizer granular shall be screened before packaging to ensure the uniformity of the finished product. Rotary drum screen is a common equipment used in the fertilizer industry for compound fertilizer and organic fertilizer production.
DEVICE DETAILS

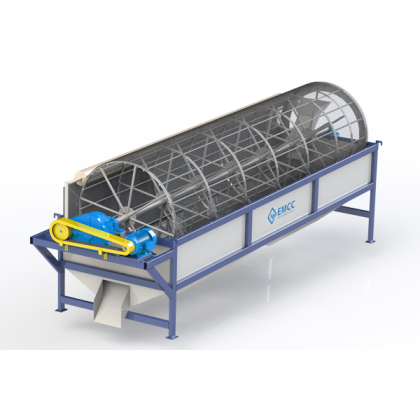

In fertilizer production, the fertilizer granular shall be screened before packaging to ensure the uniformity of the finished product. Rotary drum screen is a common equipment used in the fertilizer industry for compound fertilizer and organic fertilizer production. Rotary durm screen is mainly used in the fertilizer production line to separate finished product and returning materials. The fertilizer sieving machine can also be used for classifying the finished product.
Range of Application
Rotary drum screen is used in many industries such as fertilizer production, steel making, mining, quarrying, foundries, food processing and chemical industry for the separating of bulk materials like compound fertilizers, organic fertilizers, stone aggregates, different kind of sand, active carbon and other materials.
TECHNICAL PARAMETERS
| Model | Working speed(r/min) | Installation Angle (°) | Capacity(t/h) | Reducer model | Power(kw) |
| GTS-1020 | 21 | 2-2.5 | 1-2 | ZQ250 | 3 |
| GTS-1030 | 21 | 2-2.5 | 2-3 | ZQ250 | 3 |
| GTS-1240 | 18 | 2-2.5 | 3-5 | ZQ250 | 4 |
| GTS-1540 | 16 | 2-2.5 | 5-8 | ZQ350 | 5.5 |
| GTS-1560 | 16 | 2-2.5 | 6-10 | ZQ350 | 5.5 |
| GTS-2080 | 12 | 2-2.5 | 10-20 | ZQ450 | 11 |
ADVANTAGE
1. Adopt combined screen which is easy for maintenance and replacement.
2. High screening efficiency, reducing labor intensity.
3. The driving part adopts pin coupling, making it convenient for assembly and maintenance.
4. Reasonable structure, stable operation, no damage to the rotary machine.
5. Sealed dust cover is installed outside the rotary sieve, eliminating flying dust, improving the working environment.
6. The sealed dust cover also helps isolate the noise produced during operation.
7. Being used in organic & compound fertilizer production lines, behind fertilizer cooling machine.
WORKING PRINCIPLE

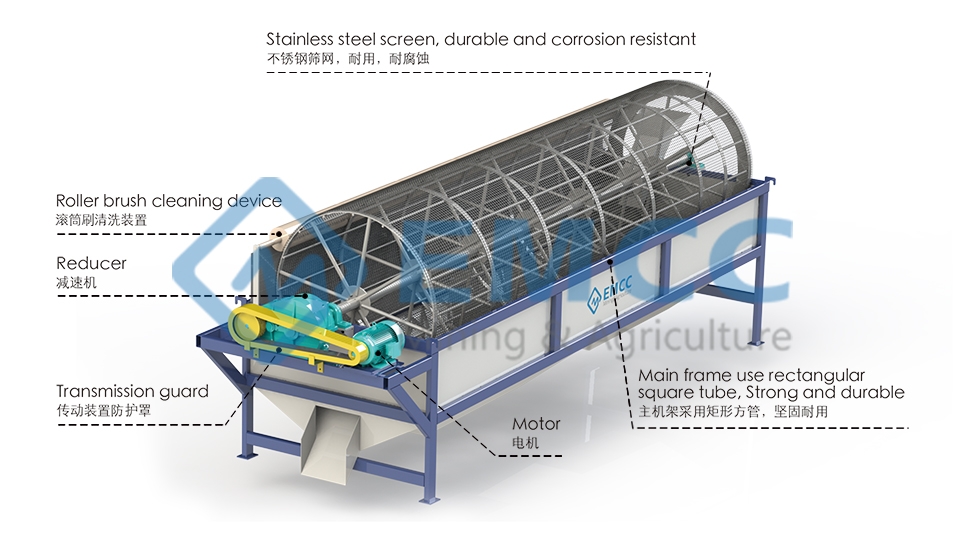

Rotary drum screen consists of five parts, including hexagonal drum, rack, funnel, reducers and motor. After the fertilizer granules go into the drum, it is screened by the rotating of the drum, and on the other hand, granules with large size move forward along the drums gradient, screened gradually through different screen.
