Description:
No matter nitrogen fertilizer, phosphatic fertilizer, compound fertilizer and organic fertilizer production, horizontal crushing machine plays its indispensable role in smashing bulk fertilizer raw materials into powder for making fertilizer particles.
DEVICE DETAILS

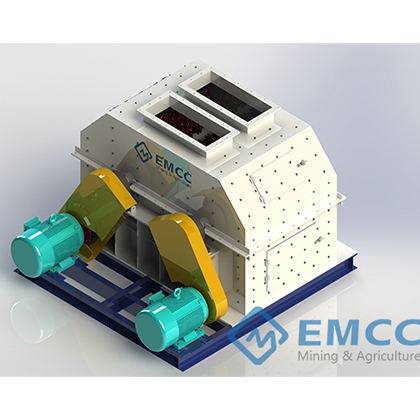

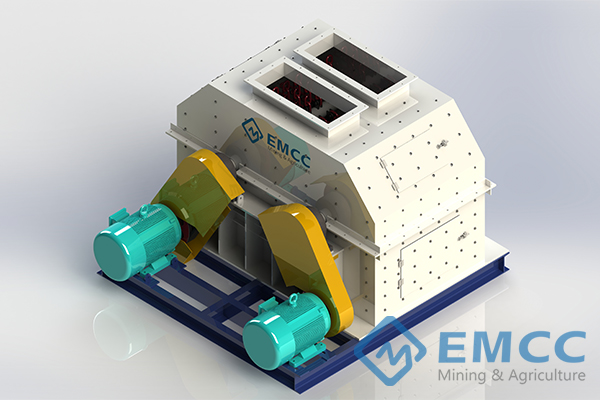

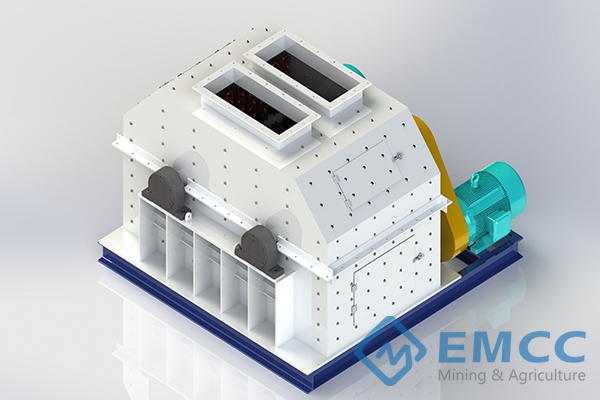

No matter nitrogen fertilizer, phosphatic fertilizer, compound fertilizer and organic fertilizer production, horizontal crushing machine plays its indispensable role in smashing bulk fertilizer raw materials into powder for making fertilizer particles. Our double shaft horizontal crusher is suitable to crush many fertilizer materials like amino acid, cereals, straws, fish powder, sludge etc. whose moisture content is about 14% and 6% free acid content. It is popular in any size fertilizer plant, and we have always been researching and developing fertilizer equipmentbased on convenience tenet.
TECHNICAL PARAMETERS
| Model | Center distance(mm) | Capacity(t/h) | Feeding size(mm) | Motor model | Power(kw) | Weight (kg) | Dimension (mm) |
| DLF-50 | 400 | 5-9 | <100 | Y132M-4 | 7.5×2 | 1425 | 1754x1292x1115 |
| DLF-60 | 600 | 6-10 | <100 | Y160M-4 | 11×2 | 2100 | 1800x1610x1430 |
| DLF-70 | 800 | 12-16 | <120 | Y160L-4 | 15×2 | 3600 | 2200x1980x1510 |
| DLF-80 | 800 | 16-20 | <120 | Y180M-4 | 18.5×2 | 4500 | 2320x2220x1730 |
| DLF-100 | 1000 | 20-25 | <120 | Y180L-4 | 30×2 | 5400 | 2520x2200x1800 |
ADVANTAGE
1. Chains are of high strength and wear-resistant alloy material,solid bearings and durable.
2. Fine and uniform powder size,least sticking to crushing chamber.
3. Simple operation,high speed and efficiency,large crushing capacity.
4. Advanced roller design,ensure enough space for completely crushing.
5. Easy to maintain, fit for continuous working
WORKING PRINCIPLE

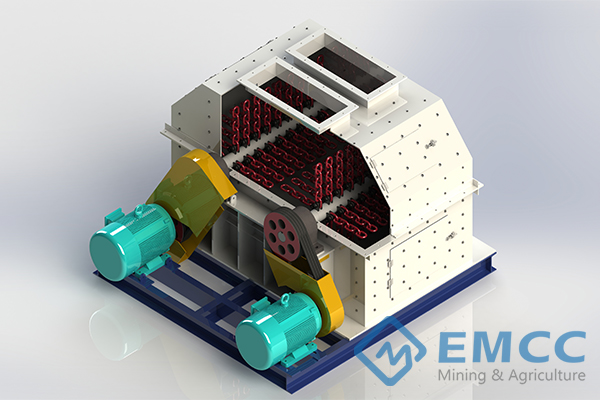

The horizontal crusher body mainly consists of motor,rotating shaft,crushing chains,chamber,etc. The motor offers power for rotating shafts and the circular chains hung on the main shafts rotate in the opposite way. Between the two main shafts is crushing area. The fertilizer materials fell down are smashed and discharged from the bottom of the crusher. The crushed fertilizer powder fine and uniform with the size range of 0.7mm-4mm and the crushing rate is above 95%, with the moisture content of less than 6%.
