Description:

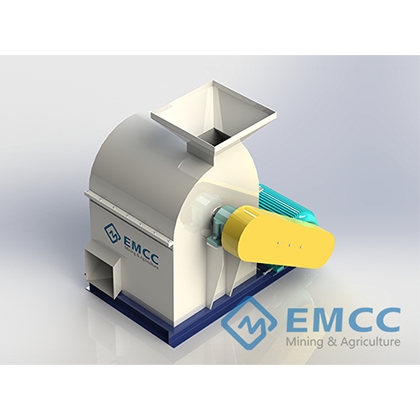

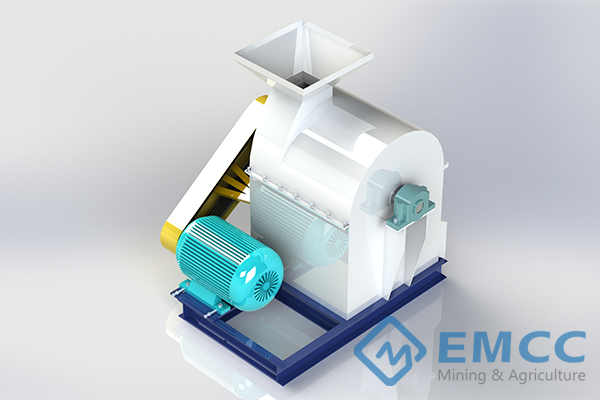

High moisture fertilizer crushing machine is typically designed and applied to wet fertilizer material such as straw, sludge, barks, manures, humic acid,etc. Customers can adjust crushing spaces according to the thickness of fertilizer particles they need.
DEVICE DETAILS
High moisture fertilizer crushing machine is typically designed and applied to wet fertilizer material such as straw, sludge, barks, manures, humic acid,etc. Customers can adjust crushing spaces according to the thickness of fertilizer particles they need. It contains two layers crushing systems which crush the materials finely enough to less than 3 mm; what’s more, it has no strict demands on fertilizer materials and the moisture content can reach about 30%. It is always your option if you are to produce organic fertilizer.
TECHNICAL PARAMETERS
| Model | Capacity (t/h) | Power (kw) | Discharge size (mesh) | Dimension (mm) |
| SF-40 | 1-1.5 | 22 | 50 | 1200x1350x900 |
| SF-40II | 1-1.5 | 22×2 | 80 | 1250x1600x1300 |
| SF-60 | 1.5-3 | 30 | 50 | 1300x1450x1300 |
| SF-60II | 1.5-3 | 30×2 | 80 | 1500x2150x1920 |
| SF-90 | 3-5 | 37 | 50 | 1800x1550x1700 |
| SF-90II | 5-8 | 75 | 50 | 2100x2600x2130 |
ADVANTAGE
1. Suitable to various organic fertilizer production, crushing humid and dry fermented fertilizer.
2. Shorten fertilizer processing stages, reducing cost and investment.
3. High crushing speed,fine and uniform powder fertilizer.
4. No screen design protects motor and machine components.
5. Good lining leather to prevent sticking.
WORKING PRINCIPLE

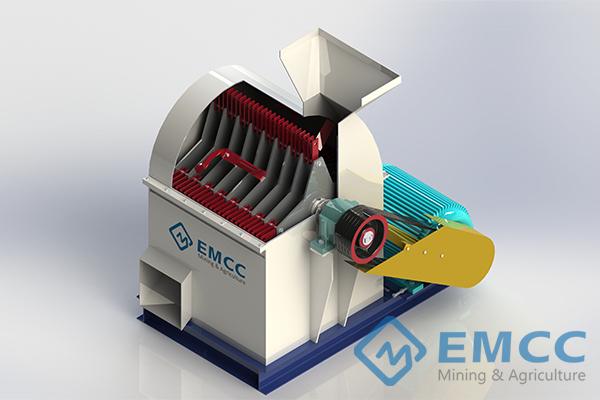

After the crusher works, the organic material can be put into the crushing chamber through the feeding hole. The crushing system of the semi-wet materials crusher consisting of two-stage rotors crushes the organic materials in the crushing chamber in two stages. The organic material is first crushed by the first-stage rotors and then crushed by the second-stage rotors, thus the granularity is fine enough.Besides, the hammers of the crusher are made of high-alloy and hard-wearing metal material to make sure the organic material is crushed well.
After the organic material is crushed enough, the granules are delivered to the discharging hole of the crusher. The semi-wet materials crusher has no screen hole so that various granules can come out from the bottom of the crusher directly without blocking.
