DEVICE DETAILS

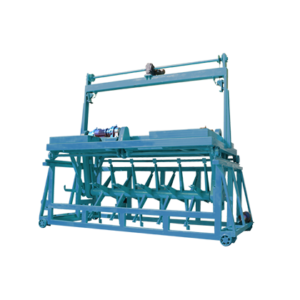

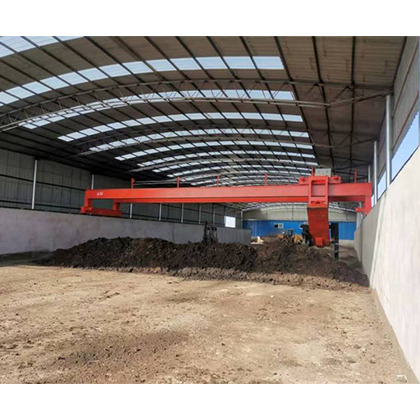

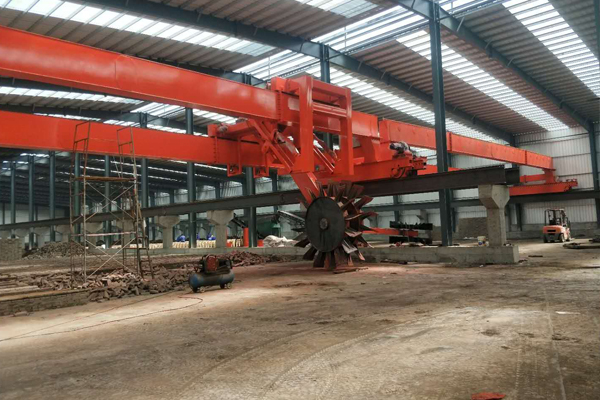

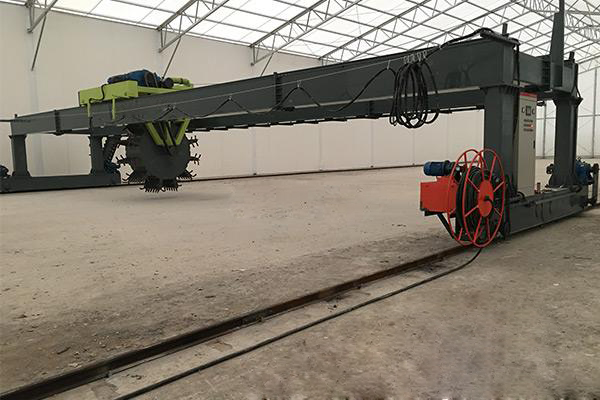

The wheel type compost turner is suitable for fermentation and turning of organic wastes such as large-span and high-depth livestock and poultry manure, sludge garbage, sugar mill filter sludge, slag cakes and straw sawdust. It is widely used in organic fertilizer plants , compound fertilizer plant, sludge garbage plant, garden field and Agaricus bisporus plantation, etc..
TECHNICAL PARAMETERS
| Model | Main Motor Power (kw) | Walking Motor Power
Longitudinal (kw) |
Walking Motor Power
Horizontal (kw) |
Turning Span (m) | Turning Depth (m) |
| LP-20M | 45 | 5.5×2 | 2.2×4 | 20 | 1.5-2 |
| LP-22M | 45 | 5.5×2 | 2.2×4 | 22 | 1.5-2 |
| LP-25M | 75 | 5.5×2 | 2.2×4 | 25 | 1.5-2 |
ADVANTAGE
1. High turning depth: its turning depth can reach 1.5-3 meters.
2. Low energy consumption: adopting high-efficiency energy-saving transmission mechanism, under the same workload, it consumes 70% less energy than traditional turning equipment.
3. High degree of automation: Equipped with a fully automated electrical control system, no human operation is required during equipment running.
4. Large turning span: the turning width can reach 30 meters.
5. Turning with no dead angle: symmetrical turning of the wheel, no dead angle turning under the displacement of the speed-shifting truck.
SCOPE OF APPLICATION
Widely used in fermentation and dewatering operations of organic fertilizer plants, compound fertilizer plants, sludge waste plants, garden fields and Agaricus bisporus plantations.
Applicable materials: can be used for livestock and poultry manure, sludge garbage, sugar mill filter mud.
