Description:

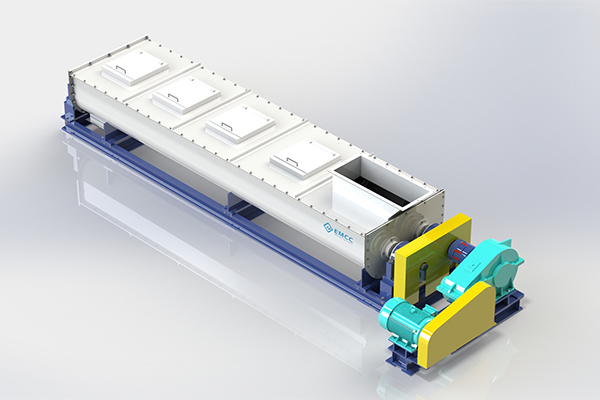

The double shaft Fertilizer Mixer is for large fertilizer mixing capacity. It is newly developed high efficiency powder blending equipment in many fields such as pharmacy,food,organic fertilizer, health care products,dyestuff,building materials,refractory material,resin glass and nuclear materials,etc
DEVICE DETAILS
The double shaft Fertilizer Mixer is for large fertilizer mixing capacity. It is newly developed high efficiency powder blending equipment in many fields such as pharmacy,food,organic fertilizer, health care products,dyestuff,building materials,refractory material,resin glass and nuclear materials,etc
Range of Application:
The double shaft works in opposite direction towards the liner direction. They both mix fertilizer particles from the center part to each other’s liner part and cycle like this. The shovels are strong enough to mix 3-15 tons per hour. There are conveyor belt to transfer mixed fertilizer to the next process.
TECHNICAL PARAMETERS
| Model | Mixing speed (r/min) | Mixing shaftdiameter(mm) | Reducer model | Capacity (t/h) | Power (kw) | Dimension (mm) |
| SJ-8030 | 35 | 420 | ZQ350-31.5 | 3-7 | 11 | 3700x800x750 |
| SJ1050 | 35 | 650 | ZQ350-31.5 | 5-10 | 22 | 6200x1300x1200 |
ADVANTAGE
1. Adopting the novel rotor structure, the minimum clearance between the rotor and shell can be adjusted to nearly zero, which efficiently decreases the residue of materials.
2. This fertilizer mixer is equipped with the pipeline which can add the grease into it. The overall structure of the machine is more reasonable, easy to install and attractive in appearance.
3. It utilizes stainless steel spiral blade with hard steel tool bit, which is durable and good wear resistance. Thus it can prolong the service life of machine.
4. With features of high mixing efficiency, materials can be fully mixed, thus improving the mixing uniformity.
5. It can also crush the larger materials during mixing process.
6. Low energy consumption, low noise, stable performance, easy to operation and maintenance.
7. Suitable for both compound fertilizer and best organic fertilizer production
WORKING PRINCIPLE

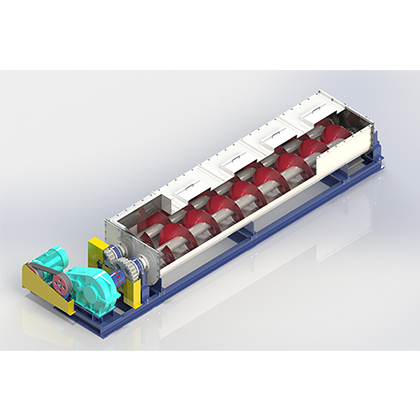

There are two main shafts on which welded many small shovels for blending. The shovels are made of robust carbon steel which is thick enough to blend and crush heavy duty fertilizer particles.Horizontal engine drives main shafts rotating. There is polypropylene material coated on the inner liner to prevent corrosion. There is reduction gears matched to ensure stable performance. The tactical design of mixing drum and rotating shafts make materials completely and evenly blending.
