Description:

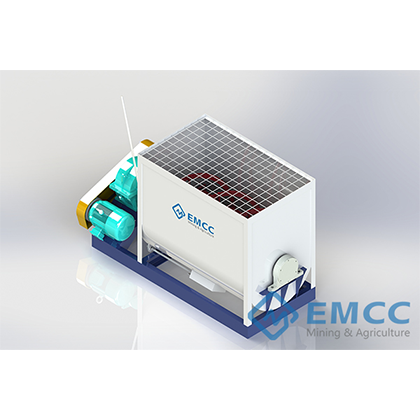

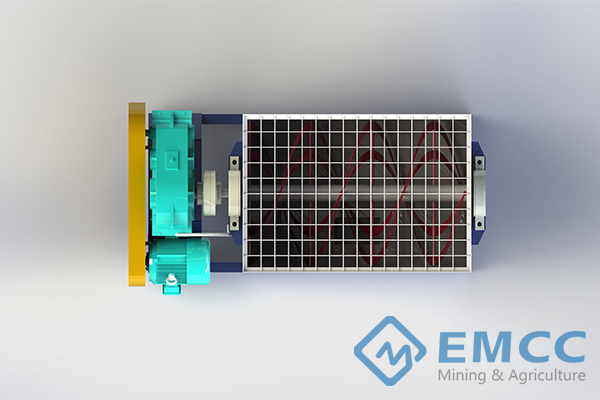

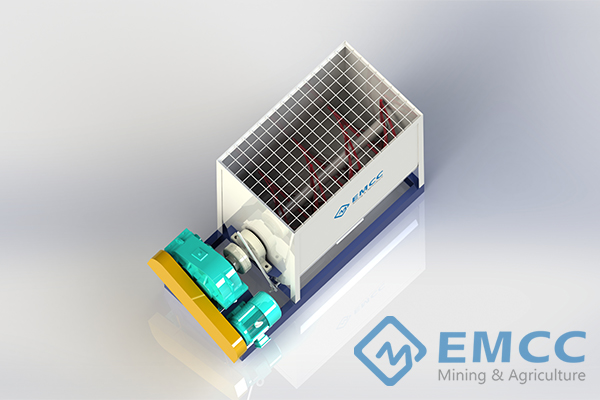

The horizontal fertilizer mixer, which is the new-generation mixing equipment developed by our factory, is high mixing uniformity, less material residual.
DEVICE DETAILS
The horizontal fertilizer mixer, which is the new-generation mixing equipment developed by our factory, is high mixing uniformity, less material residual. This kind of fertilizer mixing machine is suitable for blending the formula feed, concentrated feed, additive premix, and raw materials of organic and compound fertilizer
Range of Application :
This kind of fertilizer mixing machine is suitable for blending the formula feed, concentrated feed, additive premix, and raw materials of organic and compound fertilizer.
TECHNICAL PARAMETERS
| Model | Mixing speed (r/min) | Reducer model | Plate thinkness(mm) | Capacity(t/h) | Power (kw) | Dimension(mm) |
| WJ-7015 | 46 | ZQ350-23.34 | 4 | 2-3 | 7.5 | 2350x1200x1000 |
| WJ-9015 | 39 | ZQ350-23.34 | 4 | 3-5 | 11 | 2350x1200x1000 |
| WJ-1630 | 21 | ZQ3500-48.57 | 10 | 10-15 | 22 | 3950x1720x2100 |
ADVANTAGE
1. Multifunctional.Applied to many heavy industry fields such as chemicals, pharmacy, food, fertilizer, dyestuff, construction materials, resin glass, ect.
2. High mixing speed and uniformly mixing,low noise.
3. Reduction gears is matched to make sure stable mixing.
4. Carbon steel materials,durable and simple maintenance cost.
5. Low energy consumption,simple operation.
WORKING PRINCIPLE
1. Ensure to check whether the bolts are loose or not before starting the machine.
2. To check the bearing block and reduction drive. To see if their oil level is in place.
3. It is strictly prohibited that the materials with the big stone, big iron and etc, to avoid damaging the mixing blade.
4. Before stopping the machine, we should first stop feeding materials. It forbids to stop the machine with materials in it.
5. Starting the main motor, to check if the direction of rotation is opposite. If opposite, stop and adjust the machine immediately.
6. This machine should be started under the circumstance of zero load. It is strictly forbidden to put raw materials in the mixer before it rotating, to avoid damage to the machine.
7. Widely used in flat die granulator production line and new type organic fertilizer production line
