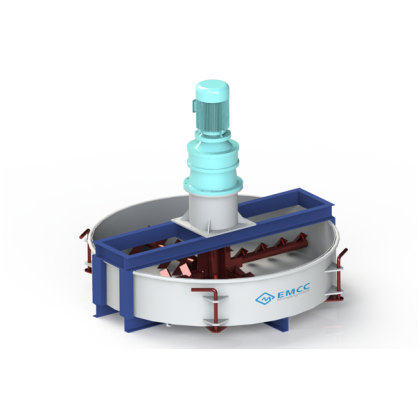

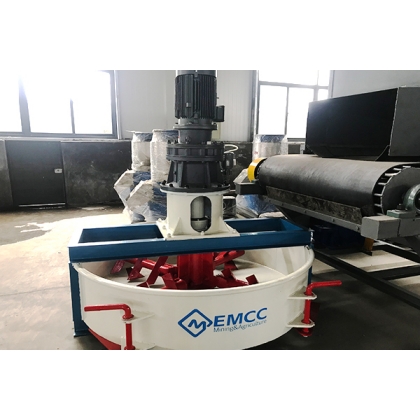

Description
The disc mixer is mainly applied to the compound fertilizer plant. By using the optimum quality material and leading technology, this fertilizer mixing machine complies with industry standards and international specifications.
DEVICE DETAILS
The disc mixer is mainly applied to the compound fertilizer plant. By using the optimum quality material and leading technology, this fertilizer mixing machine complies with industry standards and international specifications. It is popular with our customers due to its high efficiency, competitive price, easy operation and low maintenance cost. In the compound fertilizers production line, it is placed before the fertilizer granulator to uniformly mix the raw materials before the granulation.
TECHNICAL PARAMETER
| Model | Dimension(mm) | Disc Depth(mm) | Disc Diameter (mm) | Power(kw) | Mixing Speed(r/min) | Capacity(t/h) |
| PJ-1600 | 1600x1600x1800 | 400 | 1600 | 7.5 | 16 | 2-4 |
| PJ-1800 | 1800x1800x1800 | 400 | 1800 | 7.5 | 16 | 3-5 |
| PJ-2000 | 2000x2000x1800 | 400 | 2000 | 7.5 | 16 | 4-6 |
| PJ-2200 | 2200x2200x1850 | 400 | 2200 | 7.5 | 16 | 6-8 |
| PJ-3000 | 3000x3000x2000 | 400 | 3000 | 15 | 16 | 8-12 |
ADVANTAGE
1. Robust structure. It is made of steel, resistant to abrasion, wear resistance, durable.
2. Design and rational configuration. PVC padded plate to avoid sticking the inner lining.
3. Cycloidal reducer, high speed and efficiency, energy saving.
4. Mixing and crushing material, easy to operate and unload materials.
5. Can work independently or match with the fertilizer plant.
PRINCIPLE OF WORK
The entire mixing process is driven by the main shaft after starting the engine. There are several stirring blades welded on the main shaft and small shovels are placed on each stirring blade. Feed the fertilizers in the cylinder. It is the shovels and the agitation blades that play an important role in the homogeneous mixture of materials. Then open the discharge door to place the average mixed fertilizer. As the material is not very wet, it almost does not stick to the shovels or stirring blades, so it is not necessary to clean the machine.
